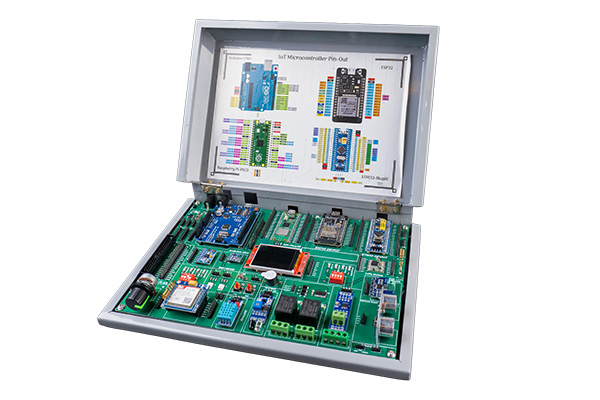

The IobiT IoT Experience Kit is a comprehensive, all-in-one embedded systems trainer designed to bridge the gap between theoretical knowledge and hands-on practice in the world of IoT. Built for students, educators, and professionals, this kit combines powerful microcontrollers with industry-standard sensors and modules to offer an unmatched development experience.
It features support for popular controllers like Arduino UNO, ESP32, STM32, Raspberry Pi Pico, and Raspberry Pi 4/5 interface, making it highly adaptable for various learning and prototyping needs. With integrated modules for LoRa, GSM/4G, RS485, and Wi-Fi/Bluetooth, users can simulate real-world IoT applications like smart home systems, industrial monitoring, and remote sensor networks.
Key onboard components include barometric, temperature, humidity, ultrasonic, voltage, and IR sensors along with output devices like TFT displays, buzzers, and RGB LEDs. It’s ideal for creating wireless sensor networks, experimenting with embedded systems, or integrating cloud platforms such as IobiT Cloud, Blynk, or custom MQTT servers.
Features and Specifications
Multi-Microcontroller Support
- Arduino Uno (ATmega328P) – Simple, beginner-friendly development
- ESP32 DevKit – Dual-core, Wi-Fi + Bluetooth MCU for advanced IoT
- STM32 DevKit – ARM Cortex-M for industrial-level prototyping
- Raspberry Pi Pico/W – RP2040 microcontroller with optional Wi-Fi
- Raspberry Pi 4/5 Header – Interface support for Pi-based projects
Communication Interfaces
- LoRa Module Interface – For long-range wireless data transmission
- GSM/4G Module (SIMCOM) – Onboard SIM slot for cellular connectivity
- RS485 Communication – Industry-standard serial interface
- I2C & UART Ready Headers – Seamless peripheral integration
Display & Output Devices
- 1.8” TFT Color Display (SPI-based) – Visual feedback for projects
- RGB LED – Full-color indicator
- Active Buzzer – Audio notifications and alerts
- 4x DP Switches with onboard LEDs – Toggle controls and status lights
Sensor Interfaces
- BMP180 – Barometric pressure and temperature sensor
- DHT11 – Temperature and humidity monitoring
- Ultrasonic Sensor – Distance and obstacle detection
- IR Obstacle Detection Sensor – Basic proximity sensing
- INA219 – Current and voltage monitoring
- Potentiometer – Analog input testing for ADC
Actuator Interfaces
- Dual Relay Module (RELAY1 & RELAY2) – AC/DC load switching
- Servo Motor Port – Control for robotics and mechanical systems
- Digital Output Headers – For external actuators and expansion
Power & Connectivity
- USB-Powered – Easy connection via microcontroller boards
- Onboard Regulated Power Rails – Stable voltage for sensors and modules
- GPIO Breakout Headers – Direct access to all major MCU pins
What's Included
- Pre-assembled IoT Experience training board
- Optional power supply
- Access to sample codes and manuals
- Technical support from IobiT expert team
